Products Description

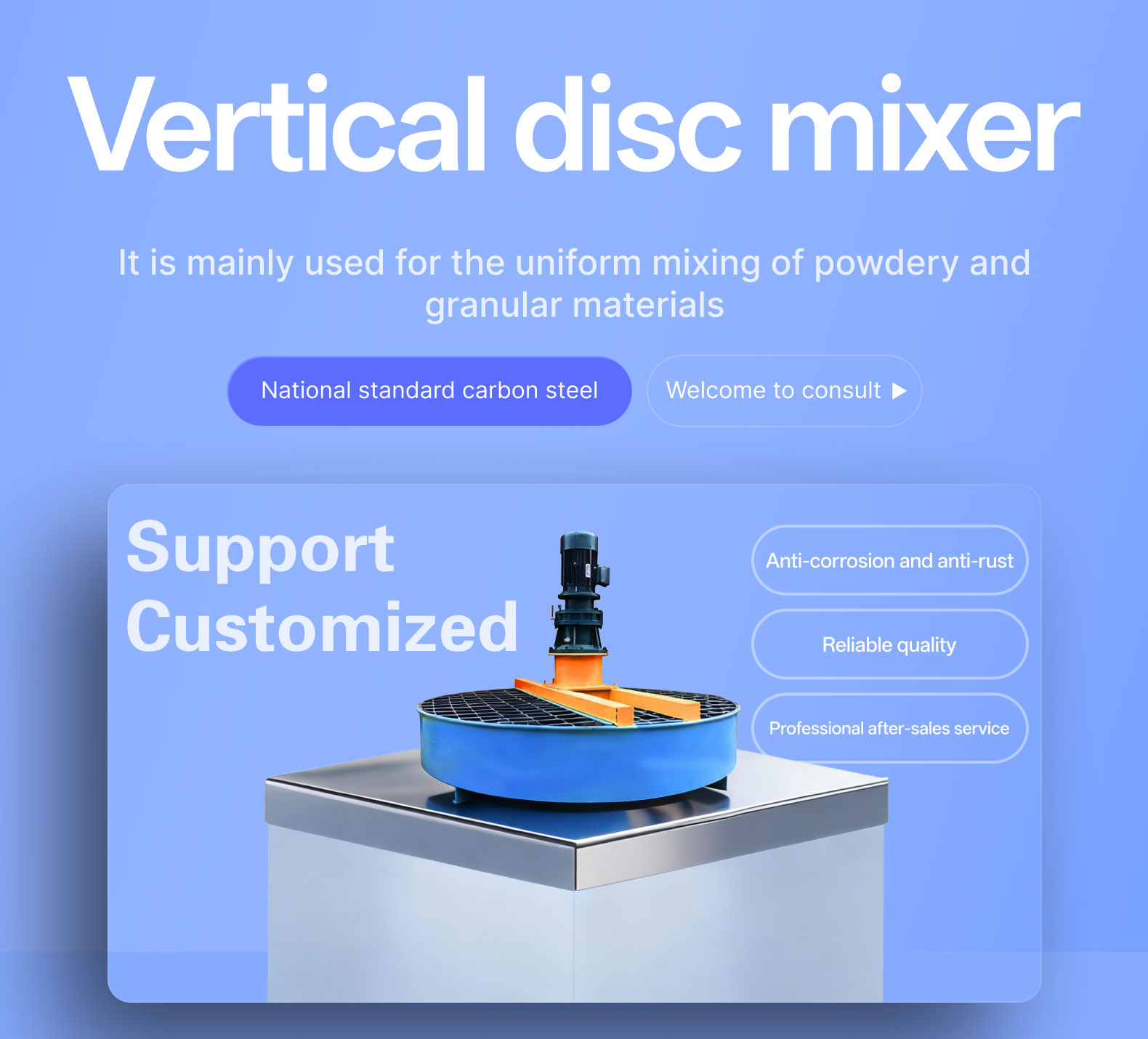

The vertical disc mixer is a specialized mixer for the fertilizer industry, which is a mixing equipment produced by our company specifically for organic fertilizer mixers.
Performance characteristics:
1. High mixing efficiency and small footprint. The spiral blades are made of high wear-resistant special alloy.
2. The use of cycloidal pinwheel reducer has the characteristics of compact structure, easy operation, uniform mixing, and convenient unloading and conveying. Smooth rotation and low noise.
3. The disc mixer has a reasonable structure of feeding from the top and discharging from the bottom.
4. The sealing between each joint surface is tight and operates smoothly.
Tags:
Technical parameter
| Model |
Edge height (mm) |
Disc diameter (mm) |
Motor power (kw) |
Reducer model |
Mixing speed (r/min) |
Main board thickness (mm) |
Bottom plate thickness (mm) |
Mixing capacity (t/h) |
Dimensions (mm) |
|
SHYPJ-1600 |
400 |
1600 |
7.5 |
BLD15-87 |
16 |
5 |
8 | 2-4 | 1600*1600*1800 |
|
SHYPJ-1800 |
400 |
1800 |
7.5 |
BLD15-87 |
16 |
5 |
8 |
3-5 | 1800*1800*1800 |
|
SHYPJ-2000 |
400 |
2000 |
7.5 |
BLD15-87 |
16 |
5 |
8 |
4-6 | 2000*2000*1800 |
|
SHYPJ-2200 |
400 |
2200 |
7.5 |
BLD15-87 |
16 |
5 |
8 |
6-8 | 2200*2200*1850 |
|
SHYPJ-2500 |
2500 |
15 | 7-10 | ||||||
|
SHYPJ-3000 |
400 |
3000 |
18.5 |
XLD9-87 |
16 |
5 |
8 |
8-12 | 3000*3000*2000 |
